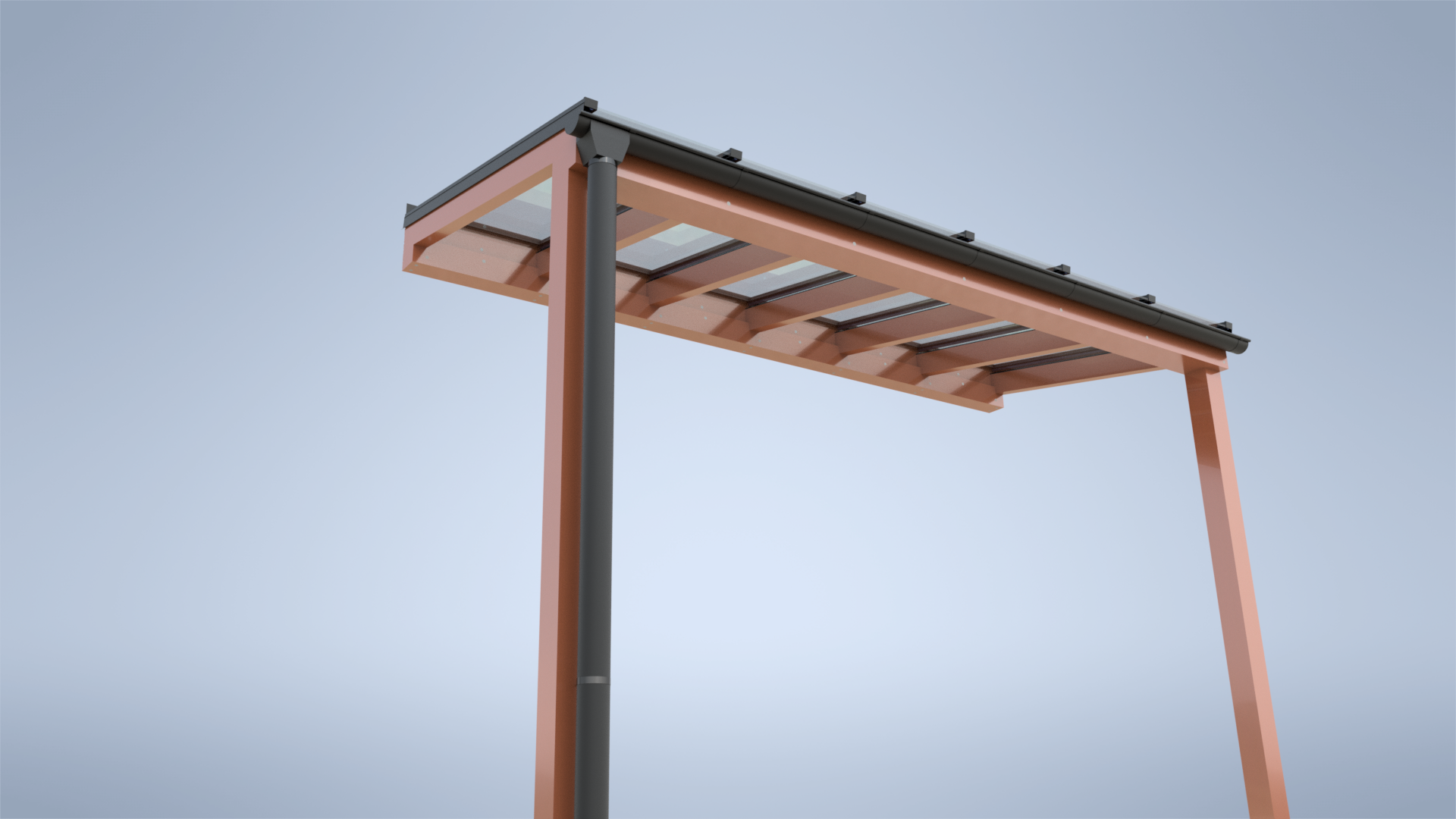

Wooden construction warm winter garden:
Warm wooden construction will give you the opportunity to enjoy nature in a warm and cozy way all year round, in all four seasons. The basis of the structure is glued/studded, knotless pine, the same wood we have been using for many years in the production of Scandinavian-type wooden windows. Wood not only provides naturalness, but also the feeling of nature and coziness inside the terrace. On the outside, the aluminum pressure profiles will provide protection against precipitation, and on the inside, the wooden structure will make you feel like you are in a natural environment. These terrace sheds are designed with a 10-degree slope, so you won't have to worry about stagnant/stationary water. On special occasions, the slope can be adjusted/changed. Aluminum pressure profiles will not allow water to penetrate inside the construction, and the glass will lead it directly to the gutter.
These glued-studded wooden wintergarden/terrace can be assembled as cold construction (using single-layer safe roof glass, as well as glazing of sides and front with a single layer glass) or warm construction (using 2 or 3 layers of glass for the roof covering, as well as warm type front and side glazing).
It is important to note, that in order to have a warm winter garden, it is necessary to assemble it in such a way that there are no "cold bridges". This means that the roof should be equipped with a special structure glass package (see below for more information about the roof covering), as well as side and front glazing. In order to ensure the lowest possible thermal transmittance, we designate warm winter gardens with a variety additional gaskets and isolators. A warm winter garden will also reduce your home's heating costs.
Unique and versatile design allows You to choose whether You want a warm winter garden, a terrace shed or just a simple – not isolated winter garden. Wooden construction can be painted in any RAL palette color without additional cost! (More information about colors down below). With a provided installation instruction, it will be built in no time.
When ordering from us, you will not only receive the ordered product on time, but we will also provide consultation/recommendation/observations. We will pack it safely and provide you with detailed installation instructions and a visualization, where you can see what your complete shed/winter garden looks like with your chosen colors.
Under production of wooden construction parts, all the necessary cut-outs, holes will be made and the covering caps will be designated in order to save time under assembly and so that You don’t have to worry about it.
Rain drainage system:
The sheds of wood/aluminum construction can be equipped with both rain runoff systems folded out of tin, as well as without it – when it is not necessary. Rain runoff systems will be painted in the color of your choice from the RAL color palette. Depending on your wishes and the measurements of the roof, you can choose which side you want to attach the downpipe. If the terrace shed/winter garden exceeds 4 meters in length, it is recommended to attach the downpipe to both ends of the gutter. The gutter is set back 20mm from each side of the shed, so that the tin folds on the sides can lead the flowing water to the gutter. It would also reduce raindrops on the wooden structure and on objects/people below. On request, the terrace shed/winter garden can be equipped without a rain runoff system.
As a standard, if the wintergarden is ordered with the rain runoff system, the set includes a Ø125mm gutter, gutter holders, gutter covers, an inlet, a downspout Ø90mm and downspout holders.
Standard colors (aluminum pressure profiles, rain drainage system):
1. RAL 7016 dark grey
2. RAL 7024 dark grey
3. RAL 9016 white
4. Or any color of Your choice from the RAL palette – non-standard.
The parts of ALU are only powder-coated, for standard colors we offer "slick" (smooth surface) painting, and we can also offer a rough surface for an additional fee. If you choose painted aluminum, you won't have to think about repainting, and it will be easy to maintain.
Painting the wooden structure:
Parts of the wooden structure can be painted in any color according to the NCS/RAL color palette, which allows you to match the existing facade of the house. When choosing a dark color for the roof, which will be installed on the south or west side of the building, we recommend assessing the possible risk of sap release.
Please pay attention to this general recommendation, as we, as producers, don’t always receive complete information on which side of the building the product will be installed in order to inform customers of this potential risk.
For those who value naturalness, we can also offer wooden structures to be varnished/stained according to the color code.
Roof covering for a “warm” terrace shed/winter garden:
Roof covering for a "cold" terrace shed/winter garden:
Glazing of the side/front “warm” terrace shed/winter garden:
Glazing of the side/front "cold" terrace shed/winter garden:
